Rear 54 - 55%
Rear Hub Placement
Left Front Camber 0 - ½ Caster 7.5
Right Front Camber -2 ½ - -3 Caster 10 Toe (L) 0 Toe out ( R ) 1/16
Stagger Front 1 ½ - 1 ⅝ Stagger Rear ¾ - 1 1/2
L 4 ¼ R 4 ½ inch Measure from OUTSIDE (Frame) Rear Bearing Hangar to where the wheel meets the hub DO NOT MEASURE from BEARING CASSETTE Note: Older Chassis can use same % just less cross

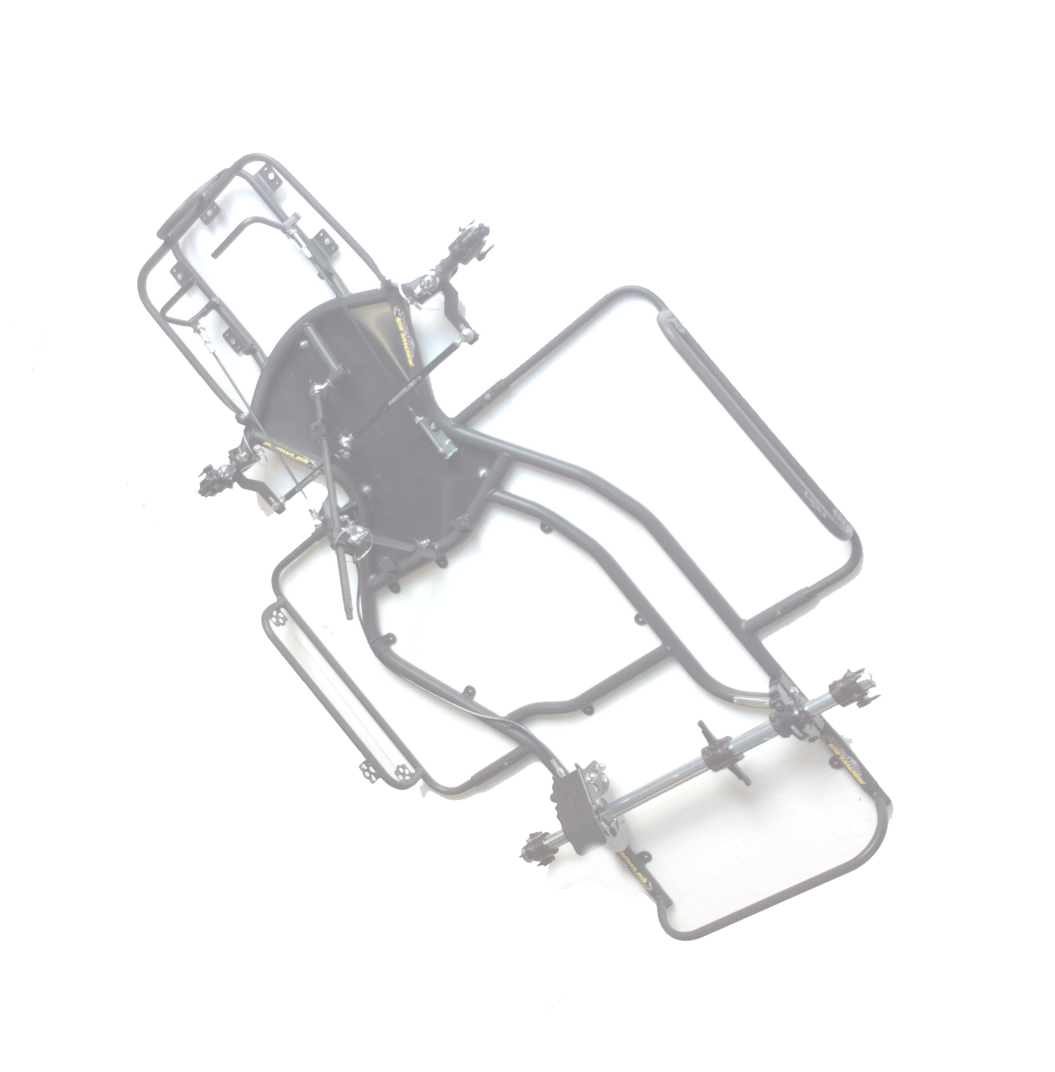

PROWLER CHASSIS 79
JR 3 Set Up Sheet seventy-nine
Left side 56 - 58%
Cross 62 - 69%
